Description

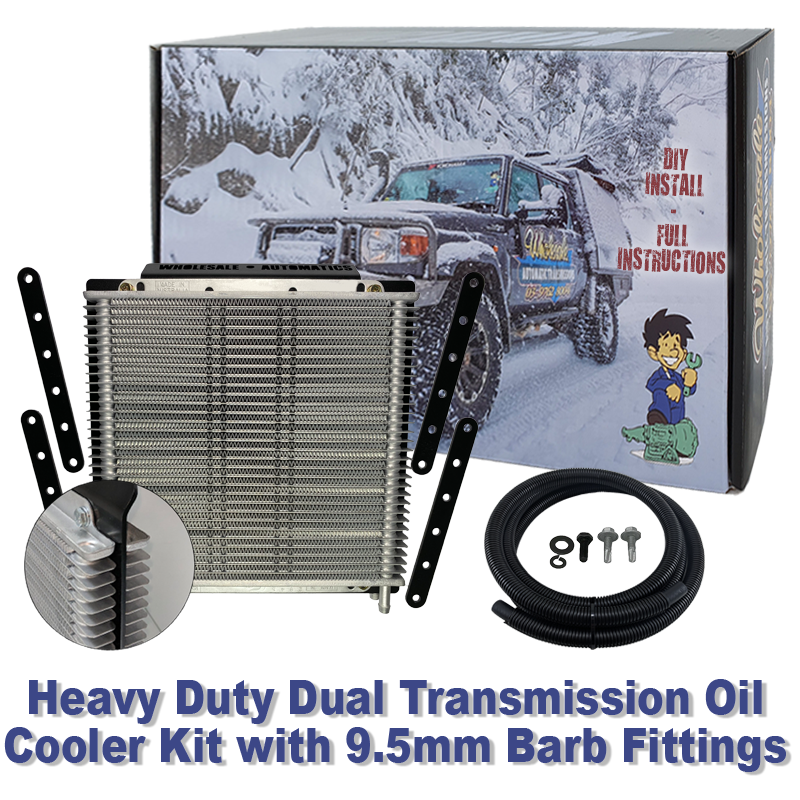

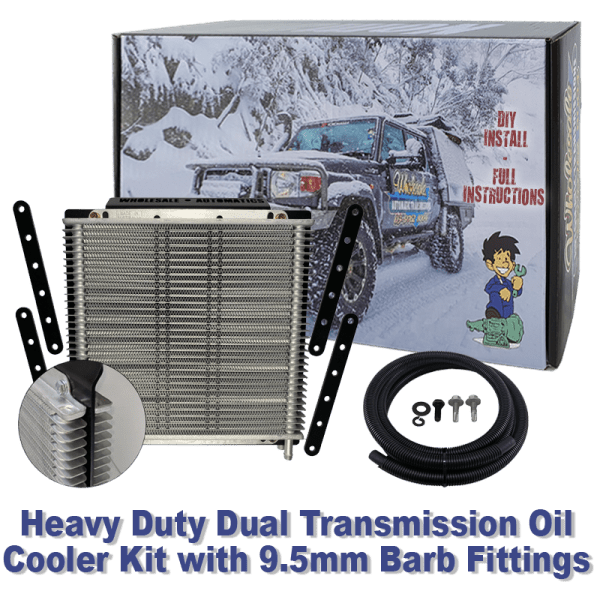

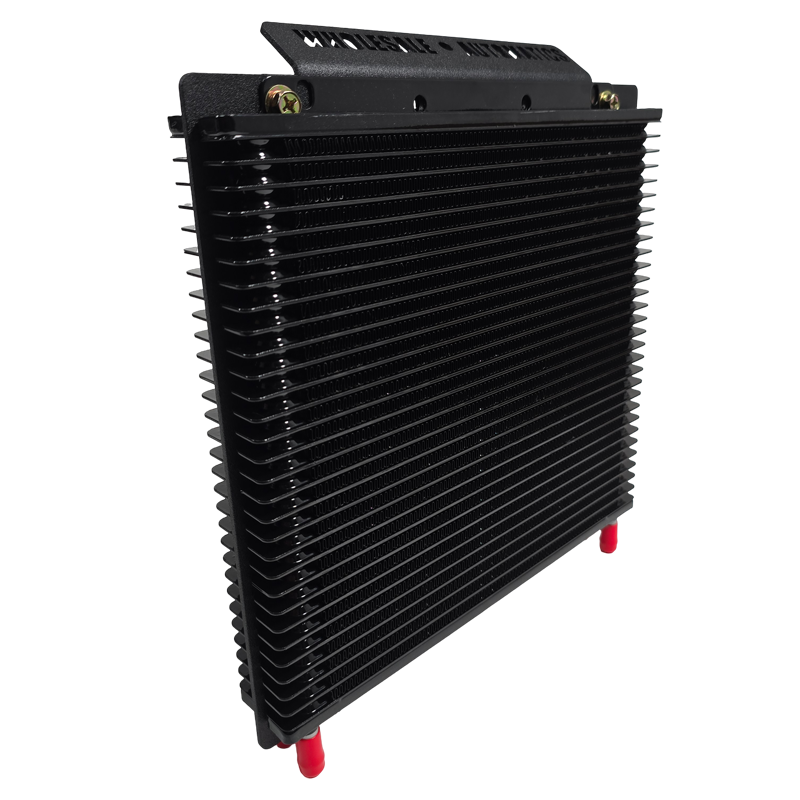

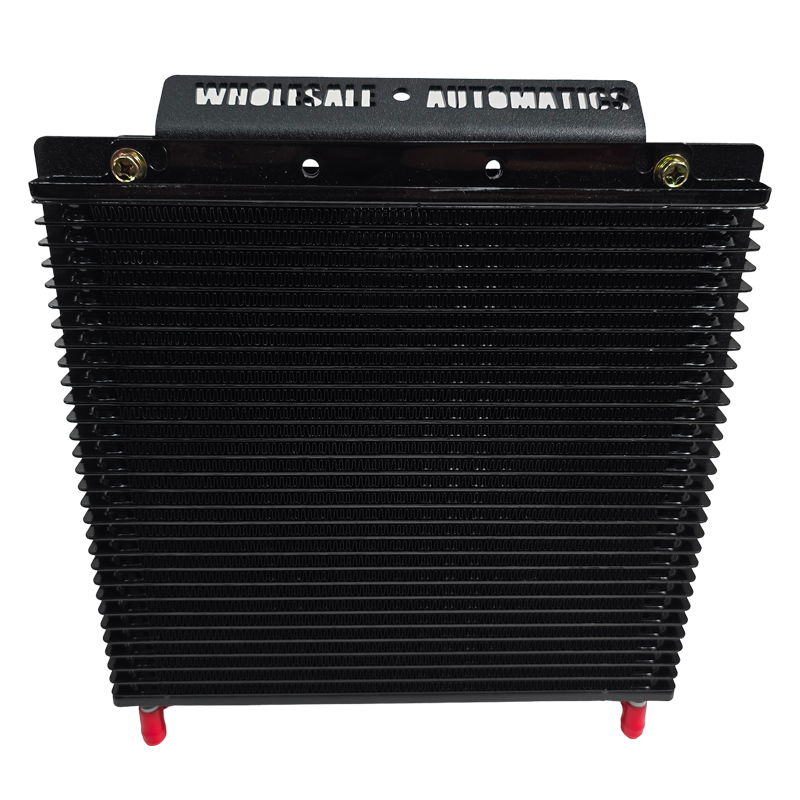

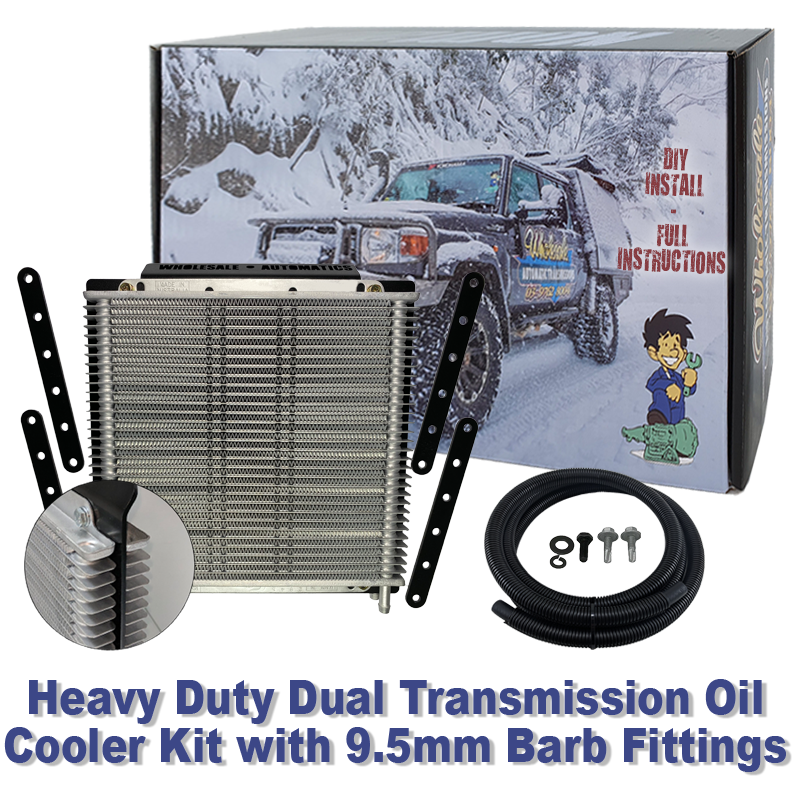

Extra Large Heavy Duty Transmission Oil Cooler with 9.5mm (3/8″) Barb Fittings
What is the best automatic transmission cooler kit? It’s one that combines durability and reliability with outstanding transmission cooling. Our Extra Large Heavy Duty Transmission Oil Cooler with 9.5mm Barb Fittings allows your transmission to maintain normal operating temperatures even while under the heaviest of loads.
Remember the hotter your transmission oil gets the thinner your oil gets. The thinner your oil gets, the more it will leak past valves and end caps. This will cause a number of shift quality issues. By installing a transmission oil cooler, the intended viscosity of the oil remains intact. Not only does this improve shift quality, but it also improves the longevity of the entire transmission.
Unlike cheaper cooler kits, this is a high quality kit constructed by one of the best names in the business that produces over 20,000 cooler kits every year. Each kit is built to withstand corrugated roads and potholes as the one-piece mount system takes all the vibrations and impact loads. The coolers are mounted onto this one-piece system in contrast to cheaper systems that try to mount directly onto the cooler. In this situation, the cooler is forced to absorb all the impacts, twist-motions etc. The cooler should never have to directly absorb these impacts. Our mounting system absorbs all of this impact, making our coolers far more durable and less likely to fracture or fail. Our mounting system is not only zinc plated it is also Mannex coated. Mannex coating is a durable industrial coating that goes on over the Zinc plating, making it capable of handling all conditions including prolonged wet road conditions, dirt roads and even salt water exposure. This kit is built to not let you down.
Here’s what our Customers are saying about our range of Transmission Cooler Kits:
“Has to be one of the best investments I’ve made. Should be fitted to all 4WD’s in Australia. Excellent instructions. Easy to fit.”
Gavin, F
“Purchased this kit for towing a caravan. Very impressed. Reduced transmission temperatures by 15 – 20°c when towing. Well put-together kit. Easy installation. Fast delivery and excellent communication.”
James, J
Benefits of this transmission cooler kit include:
- Increases the life of your transmission, by reducing wear and deterioration of transmission components due to excessive heat
- Reduces the risk of your transmission overheating and failing
- Prevents rubber seals from deteriorating (including clutch apply seals)
- Greatly increases the life of your transmission oil
- Improves shift quality by stopping the transmission oil from becoming too thin due to excessive heat
Typical applications:
- Suitable for passenger vehicles, SUVs, 4WDs and manual to auto conversions.
Wholesale’s transmission cooler kits are:
- Tough thick 3mm heavy duty steel
- Strong single piece bracket design with 4 adjustable mounts – For maximum rigidity even over corrugations
- Dual coated – both zinc plated and Mannex Black coated for maximum corrosion resistance
- 2 x High efficiency crossflow transmission oil coolers
- High temp trans cooler hose and fittings
- DIY installation instructions
As the largest 4WD transmission specialist in the southern hemisphere we see many failed from other less experienced retailers. It’s one of the reasons we designed and manufactured our very own Extra Large Heavy Duty Transmission Oil Cooler with 9.5mm (3/8″) Barb Fittings here in Australia for Australian conditions.
WARNING!!
- Never install a multi-piece transmission cooler bracket or one that includes the transmission cooler as part of the bracket structure. They are prone to fatigue and failure.
- Never install a stainless steel transmission cooler bracket. Stainless steel induces corrosion in your aluminium cooler. Just google “stainless steel and aluminium” to find out more.
Here at Wholesale Automatics we are proud of our kits because they are Australian designed and manufactured for our tough and outback conditions. They won’t let you down.
Note! In order to get further control of your transmission temperature you can check out our Transmission Temperature Gauges.
Installation Instructions
