Transfer Case Adaptor – 4L60E 6bolt rear pattern to Nissan Patrol GQ 4.2L / GU 3.0L, 4.2L, 4.5L, 4.8L (Heavy Duty 4L60E)

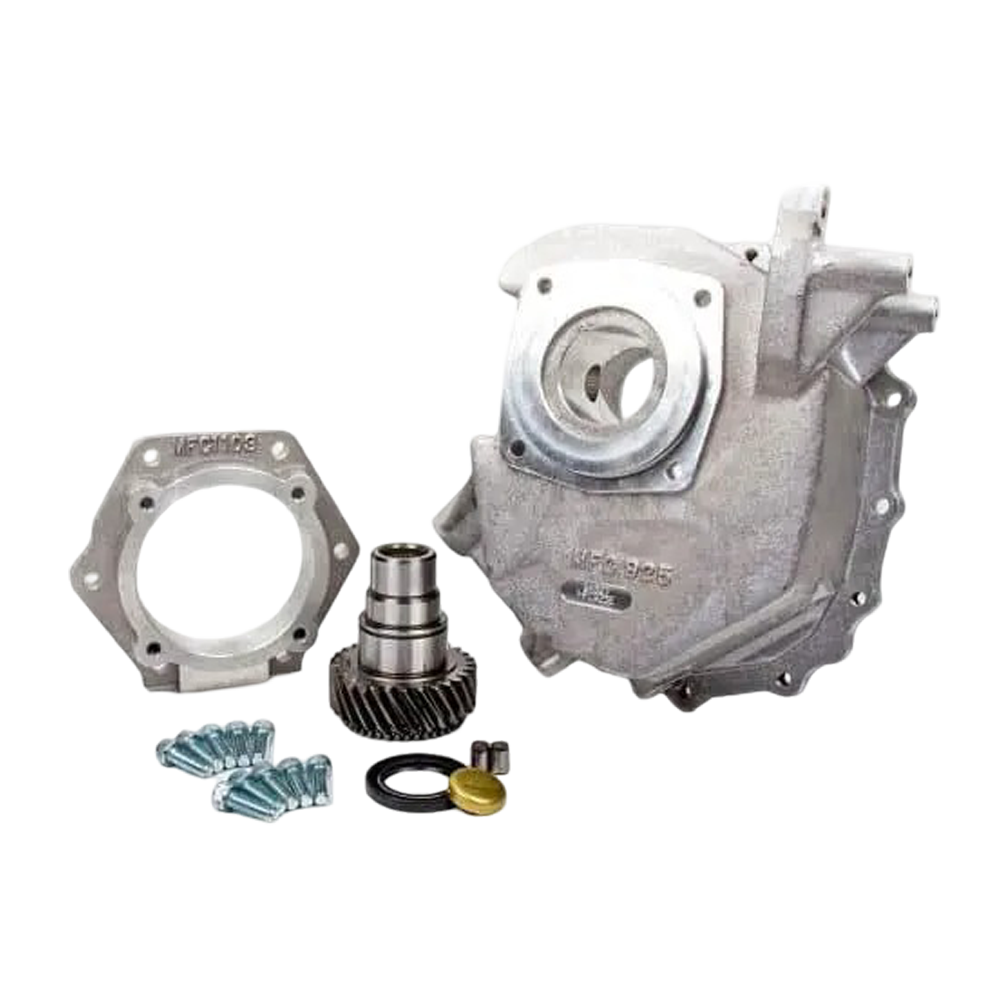

This is a new heavy-duty 4L60E (6 bolt rear housing) to Nissan Patrol GQ or GU transfer case adaptor. The transfer case adaptor housing replaces the automatic transmission extension housing and then fits the transfer case using the original Nissan bolts. The housing has mounting provisions for the hi/low lever and factory Nissan Patrol cross-member rubbers.
This new heavy-duty kit is supplied with a new transfer case input gear that accepts the factory 4L60E output shaft. This new gear will require bearings to be swapped over from the existing factory input gear. Alternatively, you could put new bearings and seals in your transfer case with a rebuild kit.
The 4L60E output shaft needs to be cut down and the end chamfered, this can be done with the shaft still fitted in the gearbox.
This kit has been designed to keep the transfer case and cross member in the factory location which means the front and rear tail shafts do not need to be modified – model dependent.
-This is dependent on the fact that the engine and gearbox are being changed together to ensure the engine mounts are in the correct location.
-If you have the transmission from an all-wheel-drive or 4wd transmission you will need to fit a 2wd output shaft
Dimensions
-The TH700R-4 & 4L60E has an overall case length of 594mm and when coupled up to our 155mm adaptor housing, gives a total overall transmission length of 749mm.
-The kit has been designed to make the conversion from manual to automatic (or vice versa) as easy as possible.
1 x Standard Nissan Input Gear 29T to Turbo 700/4L60
1 x Transfer Case Adaptor – 4L60E to Patrol
1 x Adaptor – 4L60E 6 Bolt to 4 Bolt
1 x M16 Banjo Shell x 1/8″ BSPT
1 x LS V8 Oil Pressure Sensor Banjo Bolt – M16 x 1.5
1 x Water Temperature Adaptor – LS V8 to GQ/GU Patrol
1 x Seal – 44 x 65 x 8
1 x Spacer – 60 x 3.5 x 74L
1 x Welsh Plug – 35mm – GQ/GU Patrol T/C
2 x Dowel – M12 x 20
2 x Washer – Copper – M16 x 22 x 1.5mm
10 x SHCS – M10 x 30mm – H/T – Z/P
1 x Washer – Copper – M12 x 16mm
