Transfer Case Adaptor – 6L80E to Land Rover / Range Rover LT230
Land Rover / Range Rover / Discovery Series 2 vehicles being fitted with the GM GEN4 engines & 6L80 6 speed transmission up to the full time 4WD LT230 transfer case. The 6L80 transmission length is approximately 60mm longer than the original ZF transmission. To compensate for this extra length, the tail shafts will require modification.
This kit will also suit the GM 6L90E automatic transmission with a 32 tooth spline output shaft.
The 6L90 case is 35mm longer than the 6L80 which will push the transfer case approximately 95mm towards the rear of the vehicle. To compensate for this extra length, the transfer case mounts and tail shafts will require modification.

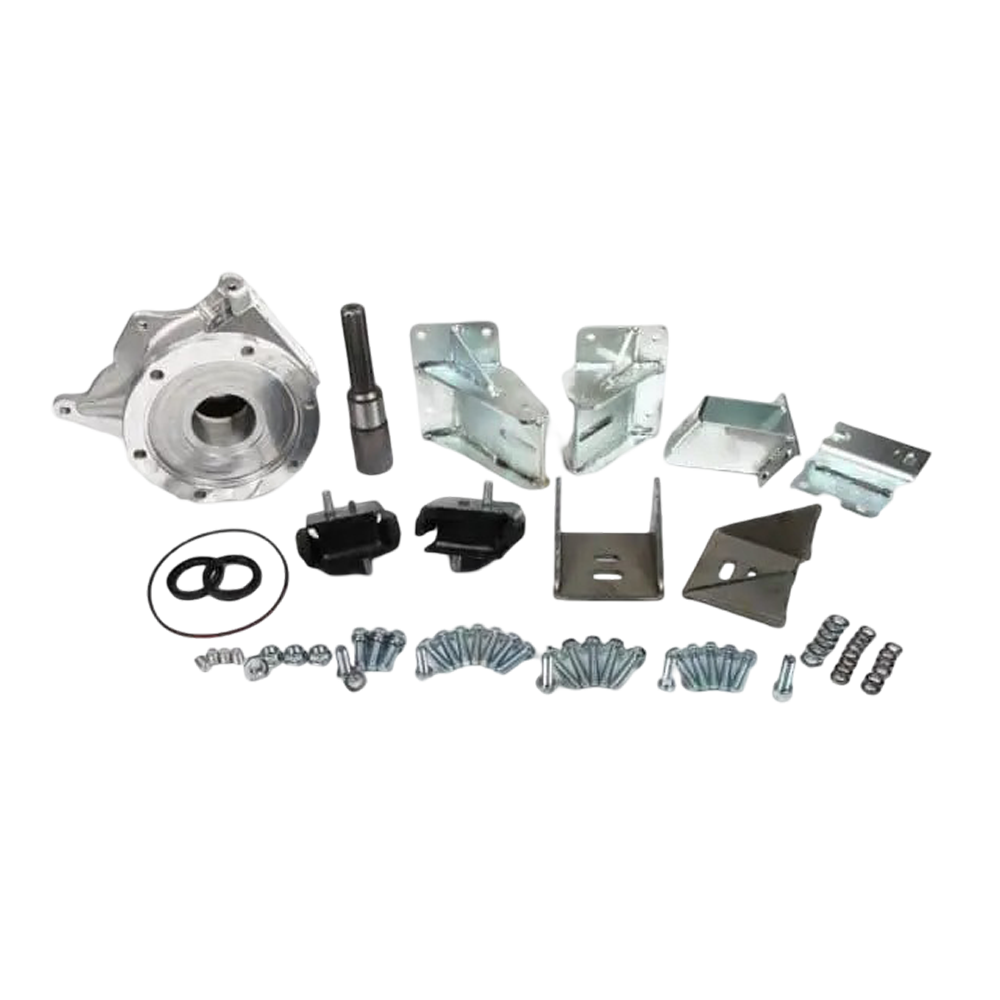

1 x Adaptor Housing 6L80 to LT230
1 x Shaft Coupler 6L80 to LT230
1 x Transfer Mount Bracket – LT230 Series 2 to 6l80 LH
1 x Engine Mount Bracket – LS V8 to Series 2 Rover R/H
1 x Engine Mount Bracket – LS V8 to Series 2 Rover L/H
1 x Transmission Cooler Manifold Assembly – 6L80/90
1 x Transfer Mount Bracket – LT230 Series 2 to 6l80 RH
2 x Engine Mount – Nissan LS HD
2 x Chassis Post – LS V8 to Series 2 Rover
1 x Washer – Coupler Shaft
1 x Transmission Fluid Cooler Pipe Fitting Seal
1 x Extension Housing Seal – 6L80 / 6L90
1 x SHCS – M12 x 1.25 x 40mm – H/T – Z/P
2 x Seal – 45 x 62 x 8
6 x Bolt – M10 x 40mm – Flanged Head
4 x Grub Screw M12 x 16mm
4 x Bolt – M12 x 35mm – H/T
6 x Nut – M12 x 1.75 – Flanged
6 x Bolt – M10 x 40mm – H/T – Z/P
8 x Bolt – M10 x 35mm – H/T – Z/P
4 x Spring Washer – M12 – Z/P
14 x Spring Washer – M10 – Z/P
6 x Flat Washer – M10 x 22 x 2mm
