Compushift Standalone Transmission Controllers

State of the Art

HGM Automotive Electronics is a specialty equipment manufacturer that designs and supplies leading edge electronic systems for automotive aftermarket use. The best-known products, the COMPUSHIFT family of controllers have become one of the most recognized automatic transmission controllers in the industry.

Factory race teams, street rod builders and owners, and heavy truck operators all use HGM products and recognize them as state of the art. HGM’s founders are car enthusiasts and responsible for design of the products themselves.

Wholesale Automatic Transmissions have been working with HGM Electronics for over 10 years to provide the best solution for our customers when building a reliable conversion package.

Tell me more..

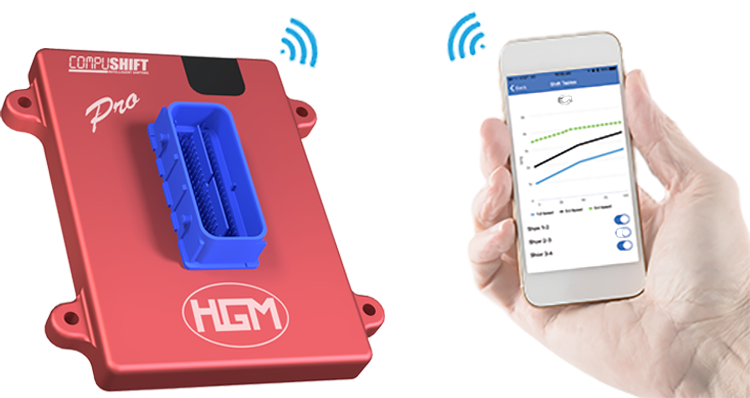

The HGM Electronics Compushift II is a stand-alone transmission controller that currently controls a wide variety of 4, 5 and 6 speed transmissions for use in conversions and project vehicles. While each transmission has its own individual kit, each kit comes with all the looms needed to connect to the transmission.

Toyota AB60 6 Speed

The Toyota AB60 automatic transmission is renowned as one of the strongest light vehicle/SUV transmissions on the market. Designed to be used with a Genuine Toyota Tip Tronic T-Bar, it is the ultimate in automatic transmission conversion systems. Every aspect of the transmission is adjustable including shift speeds, automatic torque converter lockup and kick-down control.

Gear Ratios

First Gear Second Gear Third Gear Fourth Gear Fifth Gear Sixth Gear Reverse Gear
3.333 1.960 1.353 1.000 0.728 0.588 3.061

Toyota A750 5 Speed

The Toyota A750 automatic transmission is probably the most widely used automatic transmission on the market at present. The A750 is currently available from the factory in 200 Series Land Cruiser Petrol, Prado 150 Series, Hilux, Mitsubishi Pajero and Triton, Suzuki Grand Vitara, Isuzu D-Max..

Available soon, the development of the A750 transmission controller is expected to be completed early 2016. This will allow full control of the 5 speed transmission using a genuine gate shift t-bar or genuine tip-tronic t-bar (depending on vehicle).



Gear Ratios

First Gear Second Gear Third Gear Fourth Gear Fifth Gear Reverse Gear
3.520 2.042 1.400 1.000 0.716 3.224

Toyota A442 4 Speed

The Toyota A442 series of automatic transmissions is one of our most successful transmissions for use with manual to automatic conversions. Originally used in the 80 Series Land Cruiser as a part electronic model (pressure controlled from a throttle cable) from 08/1992 until 12/1997. This version then continued onto the 105 Series Land Cruiser behind the 1HZ diesel and 1FZ-FE petrol motors until 07/2007.

The 100 Series Land Cruiser started in 1998 with a full electronic version of the A442 behind the 1HD-FTE turbo diesel and 2UZ-FE V8 petrol. The full electronic means there is no throttle cable needed so perfect for use behind throttle by wire applications.

Both of these transmission versions are controllable by the Compushift Transmission Control System.

Gear Ratios

First Gear Second Gear Third Gear Fourth Gear Reverse Gear
2.950 1.530 1.000 0.765 2.678

Nissan RE5 5 Speed

The Nissan RE5 transmission specifically available behind the TB48E in the Nissan Patrol. With an excellent ratio sweep and solid mechanical strength, the RE5 will be a fantastic choice for many doing automatic conversions.

Available soon, the development of the RE5 transmission controller is expected to be completed early 2016. This will allow full control of the 5 speed transmission using a genuine tip-tronic t-bar.

Gear Ratios for Nissan Patrol TB48 RE5

First Gear Second Gear Third Gear Fourth Gear Fifth Gear Reverse Gear
3.540 2.264 1.471 1.000 0.834 2.370

Nissan RE4 4 Speed

The Nissan RE4 transmission with the larger torque converter, available since 09/1992 in the GQ Patrol, is one of the most mechanically reliable transmissions we have seen and is perfect for a Towing and Touring vehicle. Can be used with the factory T-Bar shifter or any aftermarket shifter that has an overdrive button.



Gear Ratios

First Gear Second Gear Third Gear Fourth Gear Reverse Gear
2.785 1.545 1.000 0.694 2.275

GM 4L80E/4L85E

The GM 4 Speed transmissions that were used primarily in USA vehicles such as the Hummer H1 and Chevy Silverado/Yukon/Tahoe and is a highly popular transmission for use in conversions especially when using an LS or 6.5 diesel engine.

Gear Ratios

First Gear Second Gear Third Gear Fourth Gear Reverse Gear
2.84 1.55 1.00 0.70 2.32

GM 4L60E/4L65E/4L70E

The GM 4 Speed transmissions that were used primarily in vehicles such as the Holden Commodore and Crewman in Australia, and Chevrolet Impala and Chevrolet Escalade in USA. We can also control the 4L60E Transaxle from the Chevrolet Corvette.

Gear Ratios

First Gear Second Gear Third Gear Fourth Gear Reverse Gear
2.84 1.55 1.00 0.70 2.32

Ford 4R70W/4R75W/AODE

The Ford 4 Speed transmissions from USA that were used primarily in vehicles such as the Ford Thunderbird, Ford Econoline, Lincoln Towncar and the Ford Mustang

Gear Ratios 4R70W/4R75W

First Gear Second Gear Third Gear Fourth Gear Reverse Gear
2.84 1.55 1.00 0.70 2.32

Gear Ratios AODE

First Gear Second Gear Third Gear Fourth Gear Reverse Gear
2.400 1.467 1.00 0.667 2.000

Ford E40D/4R100

A carry over of the C6 3 speed transmission, the E4OD and later the 4R100 provided an electronic 4 speed with overdrive transmission. E40D was used primarily in the heavy duty applications such as the Ford Bronco and Ford F-Series. With the 4R100 replacing the E4OD in the late 90’s.

Gear Ratios

First Gear Second Gear Third Gear Fourth Gear Reverse Gear
2.71 1.54 1.00 0.71 E4OD – 2.16
4R100 – 2.88

If your transmission is not listed, contact us to discuss your options
