Transfer Case Adaptor Kit to Suit Toyota 6 Speed AB60 Transmission to Toyota 76,78,79,80,100 Series HF2A or 19 Spline HF1A Transfer Case

Description

Toyota Transfer Case Adaptor

Wholesale Automatic’s Toyota 6 Speed AB60 Automatic Transmission to Toyota 76, 78, 79, 80, 100 Series HF2A or 19 Spline HF1A Transfer Case. This kit has a full CNC machined aluminium adaptor housing connecting spud shaft, bolt kit, Welch plug and fitting instructions. Will allow you to use most 80 and 100 Series rear mount configurations giving you multiple choices. As Wholesale Automatic’s most popular adaptor kit it has been fine tuned over the years with over 1,500 kits sold at time of print.

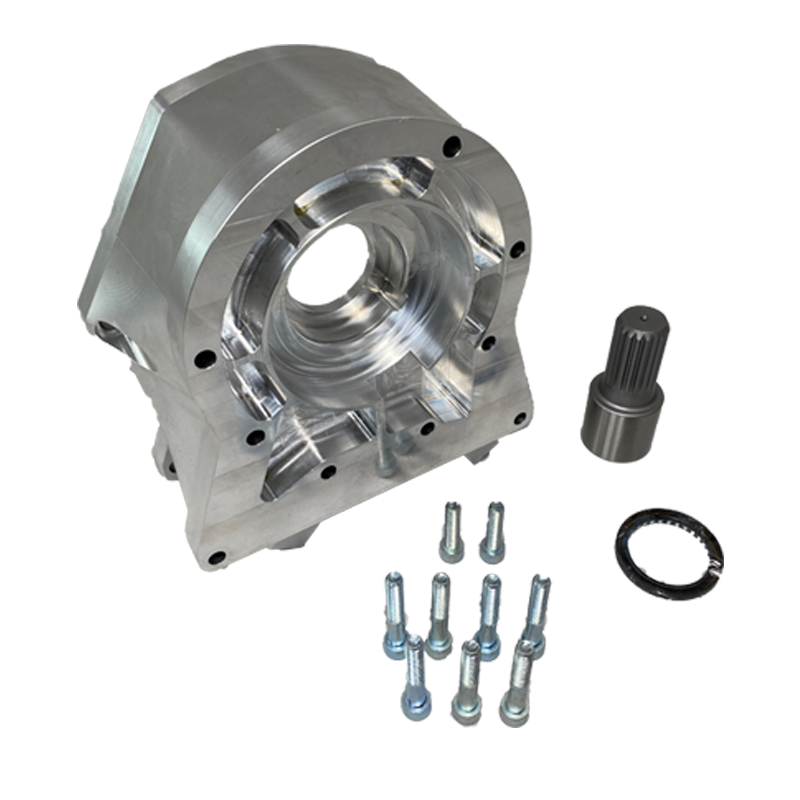

The Adaptor comes with:

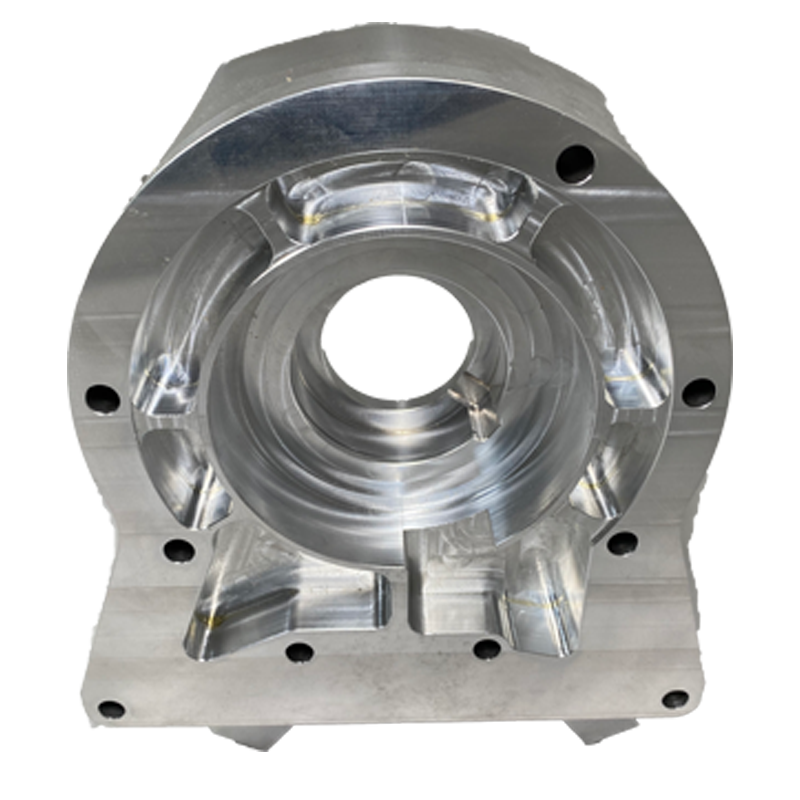

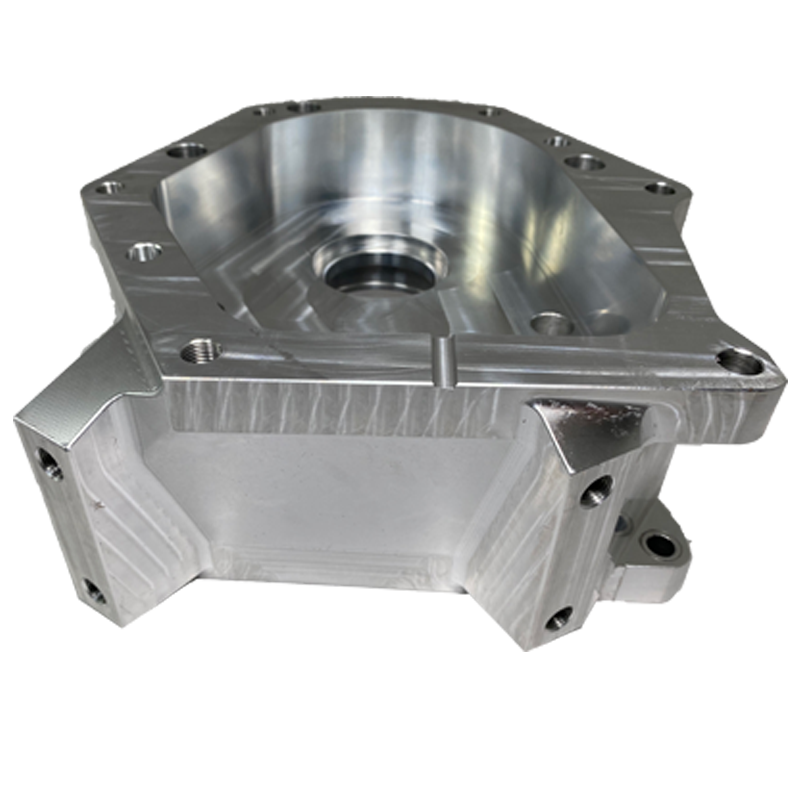

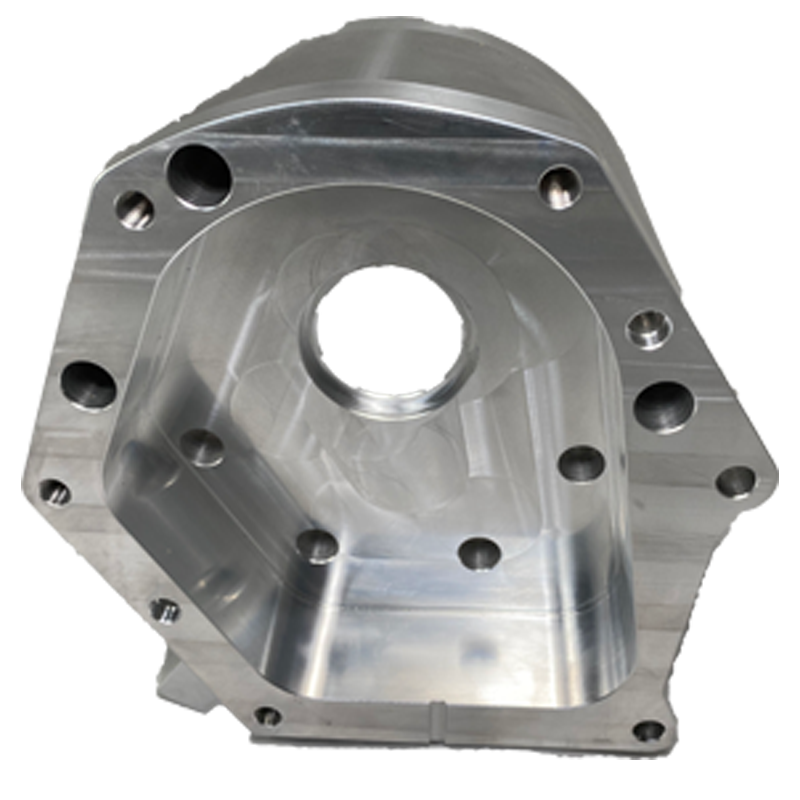

1 x 116mm CNC Machined Aluminium Adaptor Housing
1 x Transfer Connecting Shaft
1 x Spud Shaft Spacer – 8mm Thick
7 x M10x1.50×60 Unbrako Bolts (Adaptor Plate to Transmission)
2 x M10x1.50×40 Unbrako Bolts (Adaptor Plate to Transmission)
1 x Oil Seal
1 x Output Shaft Inner Welch Plug
1 x Fitting Instructions

Fitting Notes

Reuse original extension housing bearing, retaining clip and locating dowels.
